Calorex DH 75-110
Swimming Pool Dehumidifiers

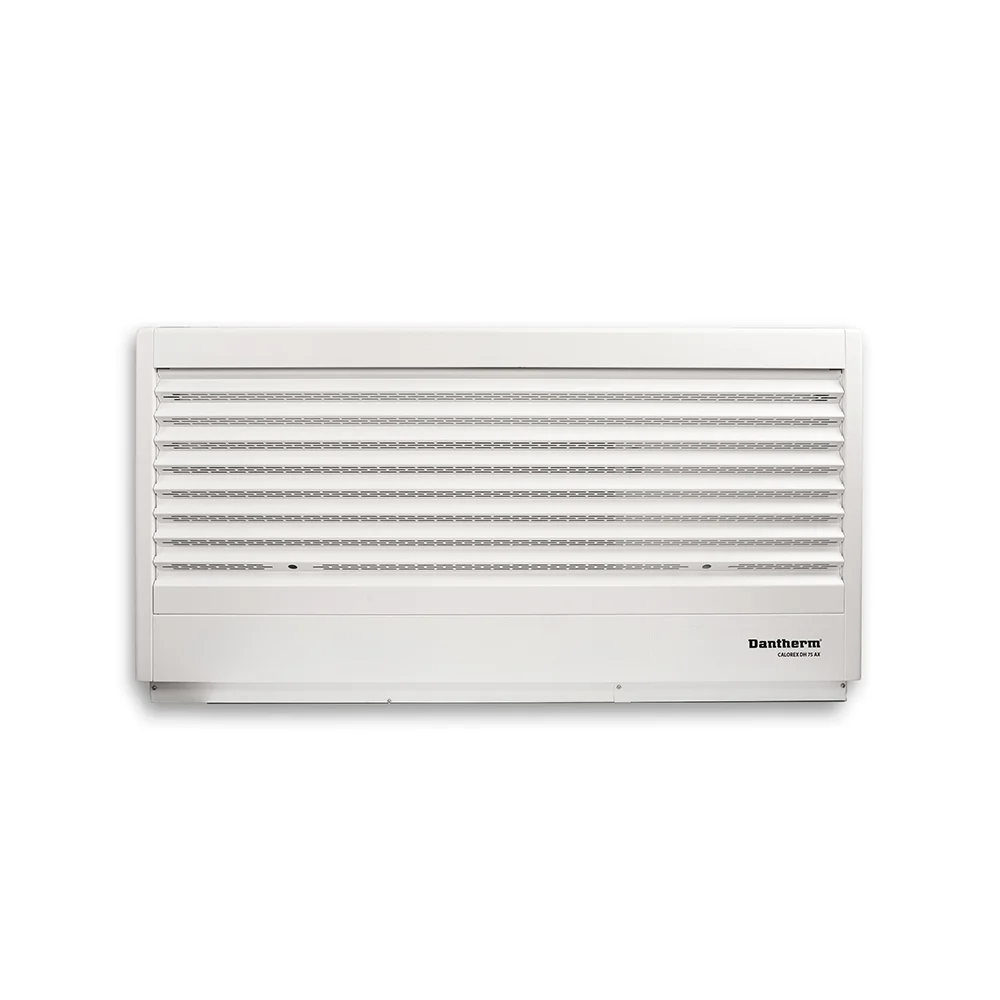

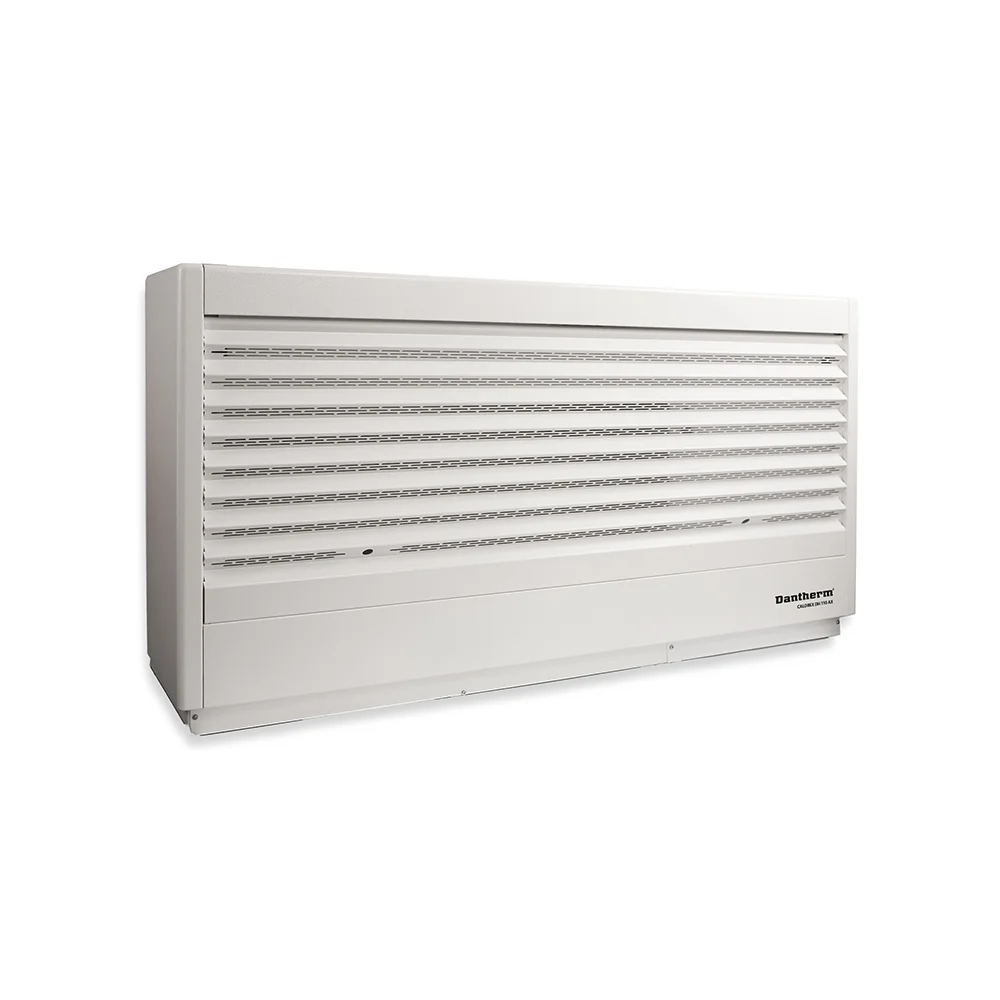

Calorex DH 75-110 – swimming pool and commercial dehumidifiers
DH 75-110 are floor-standing high performance and high capacity dehumidifiers. With high moisture extraction for low energy use, as well as being corrosion free and easy to clean, they are ideal for dehumidifying any space including keeping your swimming pool environment healthy the humidity under control. Options are also available for additional air heating, and through-the-wall installation that can be situated adjacent to the pool hall or a specific area that needs dehumidifying.
Key Features
Options
Product specifications
| Specifications | Units | DH 75AX |
|---|---|---|
| Operating temperature range | °C | 5-35 |
| Dehumidification @ 30°C/60% RH | l/24h | 86 |
| Heat recovered to air @ 30°C/60% RH | kW | 4.0 |
| Air flow | m³/h | 1,180 |
| Sound pressure level @ 3m | dB(A) | 53 |
| R407C gas weight/CO₂ equivalent | kg/t | 2/3.55 |
| Power supply | V/Hz | 230/1ph/50 |
| Nominal power consumption | kW | 1.5 |
| FLA | A | 9.5 |
| Maximum supply fuse, per phase | A | 13 |
| LRA (compressor start) | A | 55 |
| Heater type | Optional LPHW | |
| Heat output @ 80°C flow | kW | 8.9 |
| Flow rate | l/min | 9.6 |
| Product size (w x d x h) | mm | 1520 x 385 x 796 |
| Weight | kg | 143 |
| Condensate drain size (brass compression) | mm | 15 |
