Dantherm CDP 135
Swimming Pool Dehumidifiers

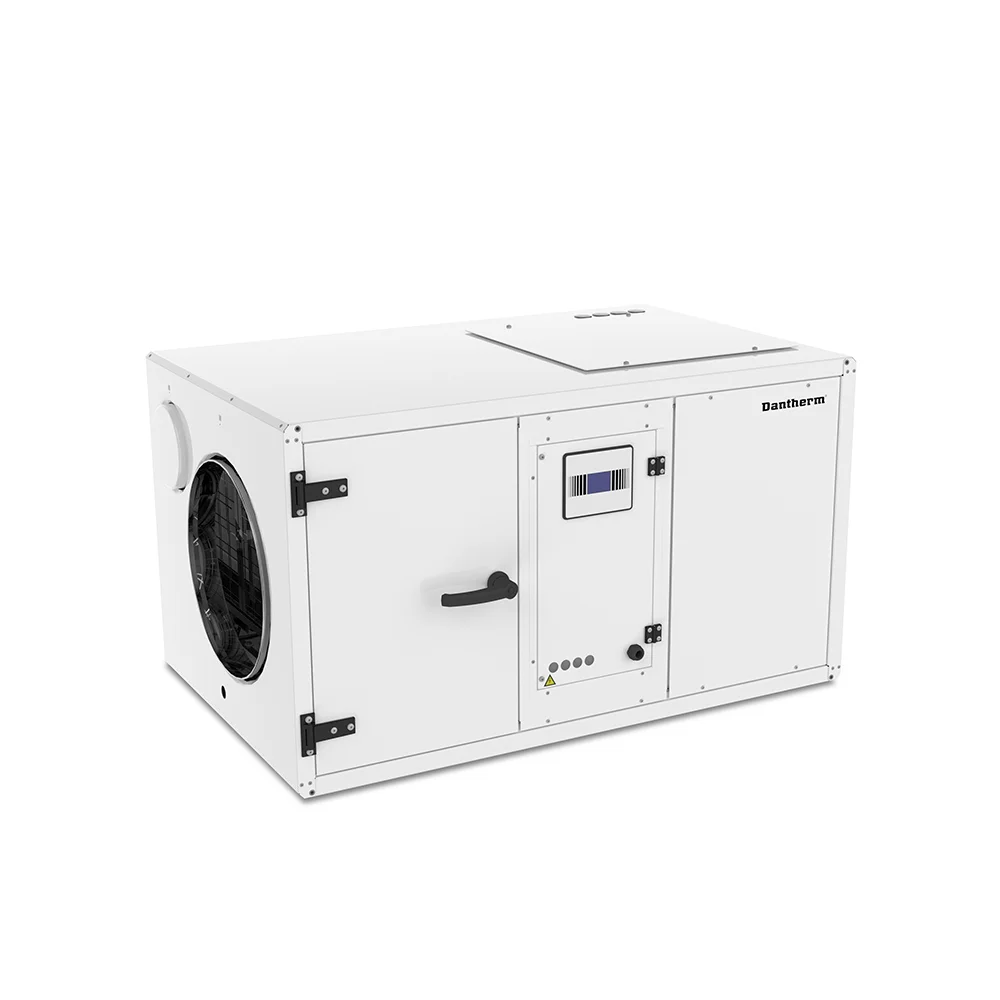

Dantherm CDP 135 – ducted swimming pool and commercial dehumidifiers
The CDP 135 ducted condensation dehumidifiers are specifically designed for hotel, private, and therapy swimming pool hall dehumidification. They offer a great moisture removal per kWh, high durability, and efficient self-regulation. They are ideal for installation in an adjacent technical room.
All metal parts and internal surfaces are powder coated before assembly and evaporator and condenser coils are made ofepoxycoated aluminium. The corrosion protection is in accordance with EN/ISO 12944-2, class C4.
The range is equipped with the Dantherm CC6 controller which comes with an integrated 2.4” touch screen for easy user customisation of setpoints and visualisation of operational variables.
Key Features
Product specifications
| Specifications | Units | CDP 135 |
|---|---|---|
| Operating temperature range | °C | 15-38 |
| Operating humidity range | % RH | 40-95 |
| Air flow, nominal | m³/h | 2,500 |
| Air flow, range | m³/h | 1,200-2,500 |
| Dehumidification capacity @ 30°C/60% RH | l/24h | 155 |
| Dehumidification capacity @ 20°C/60% RH | l/24h | 75 |
| Dehumidification capacity @ 30°C/60% RH | l/24h | 222 |
| Specific Energy Consumption (SEC) | kWh/l | 0.39 |
| Specific Energy Consumption (SEC) | kWh/l | 0.58 |
| Max. external pressure loss | Pa | 350 |
| R454C gas weight/CO₂ equivalent | kg/t | 1.5/0.22 |
| Power supply | V/Hz | 230/1ph/50 400/3ph/50 |
| Power consumption, nominal air flow | kW | 3.3 |
| Current, max. | A | 16.1/ 5.7 |
| @ 20°C/60% | kW | 1.9 |
| @ 30°C/60% | kW | 2.8 |
| Maximum | kW | 3.3 |
| Product size (w x d x h) | mm | 1300 x 900 x 850 |
| Weight (w/o water-cooled condenser) | kg | 230 |
| Colour | RAL 9016 |
