Elitech USB PDF Data Logger Recorder Single-use Disposable, up to 120 Days Transportation, Temperature Monitoring Report -30℃~70℃/-22～158℉ RC-17
Elitech RC-17 handles the temperature monitoring for your food supply chain from processing, transportation to distribution. Store up to 16,000 temperature readings with LED status notice and super small & light design. This disposable temperature recorder is packed in a waterproof bag, monitoring data without taking it out of the bag.
Key Features:
- Single-use, software-free, auto-generated and encrypted PDF report (password protection)
- IP67 waterproof meets HACCP requirements for food safety

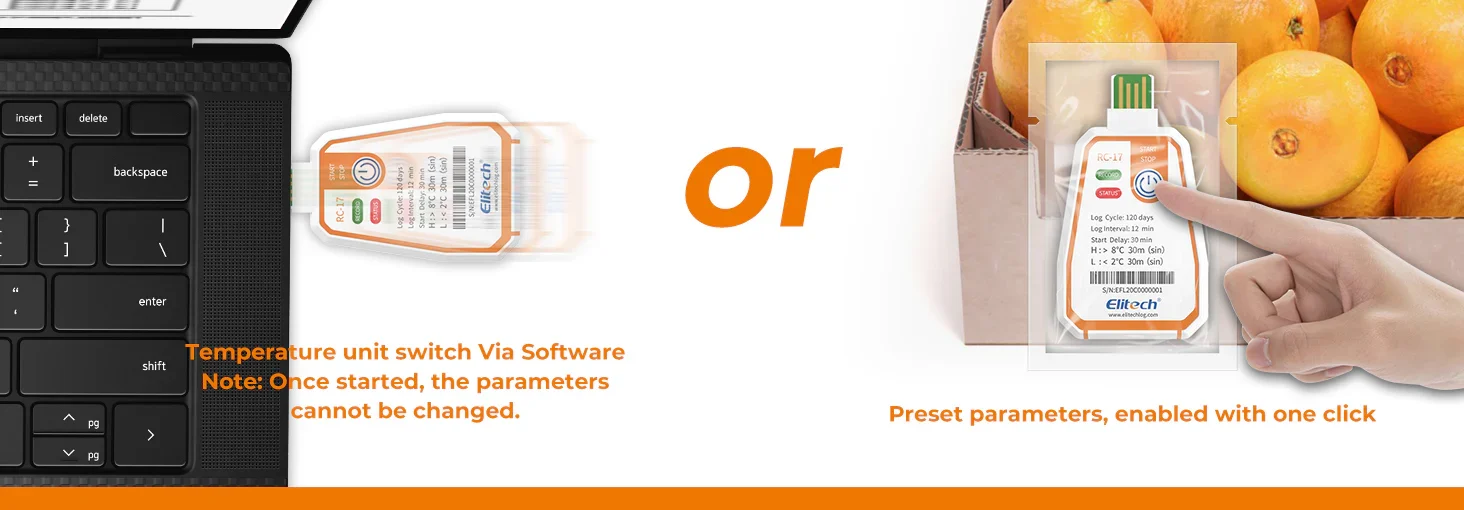

- Adjustable log intervals: 10s-24hr for the first-time use
- 2 alarm types: single and cumulative; 3 start modes: immediate, press button, timing; 5 alarm thresholds: 3 High thresholds + 2 Low thresholds.
- 24/7 US Technician Support via Email and Phone.
- Battery Shelf Life: 2 years (stored and used under normal temperature environment)

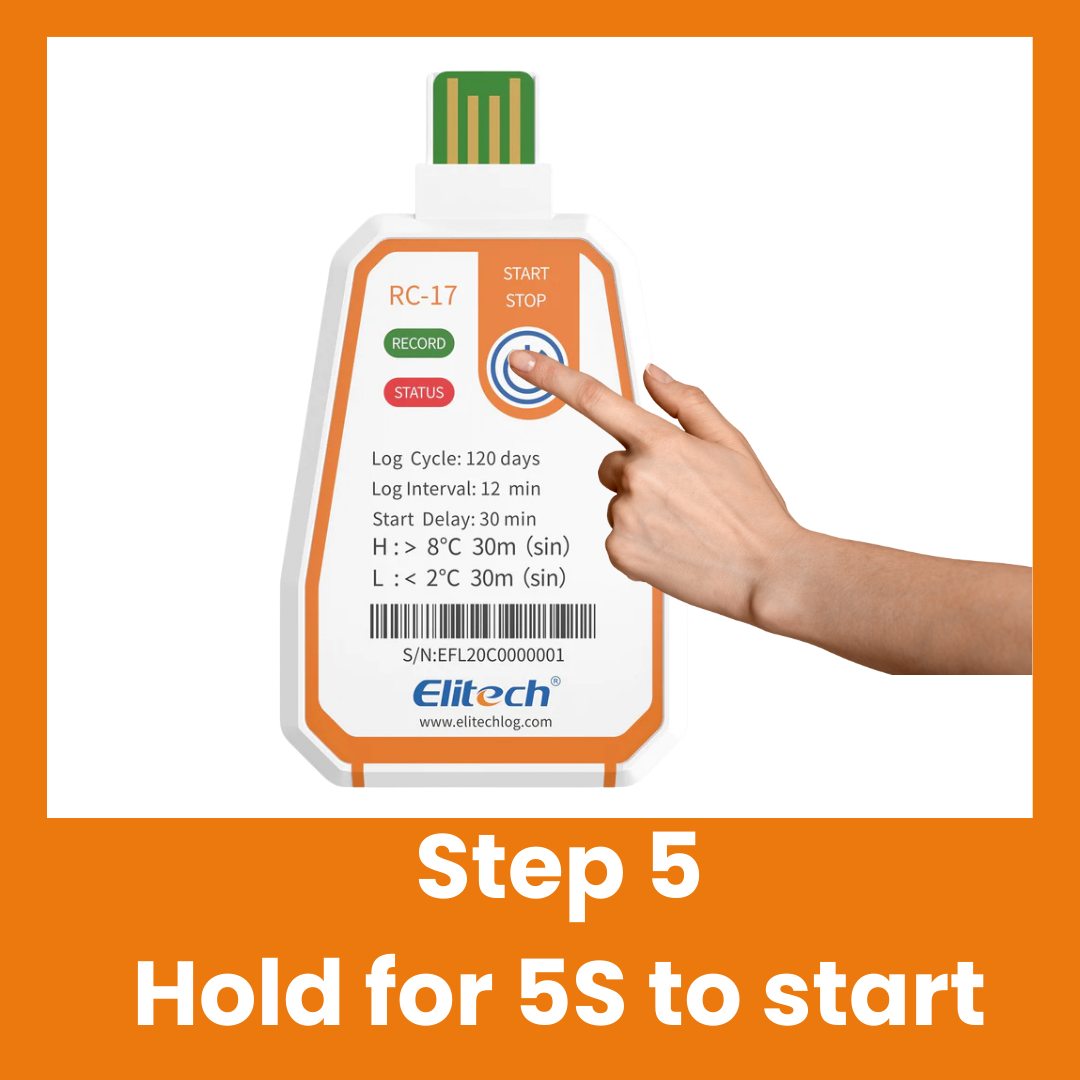

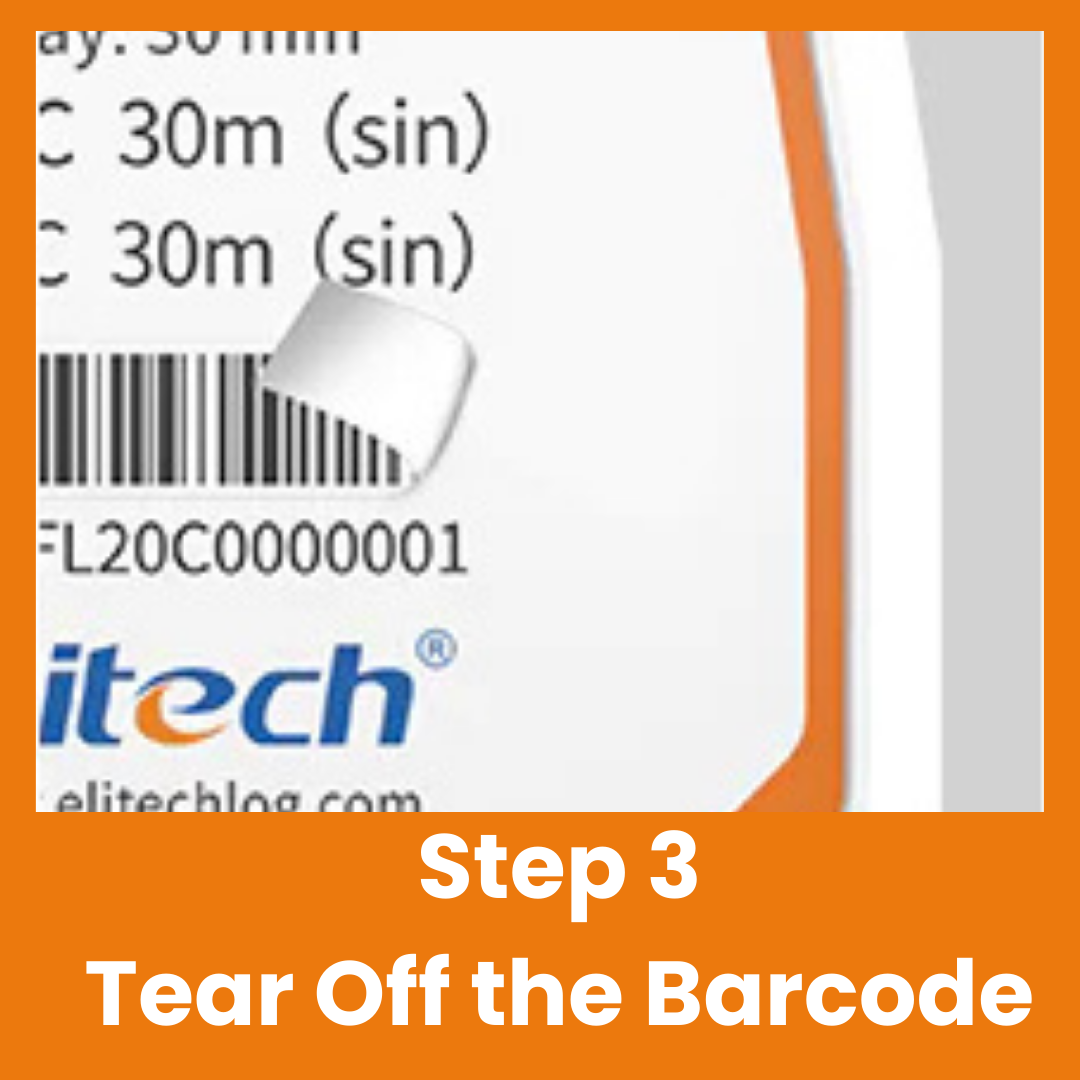

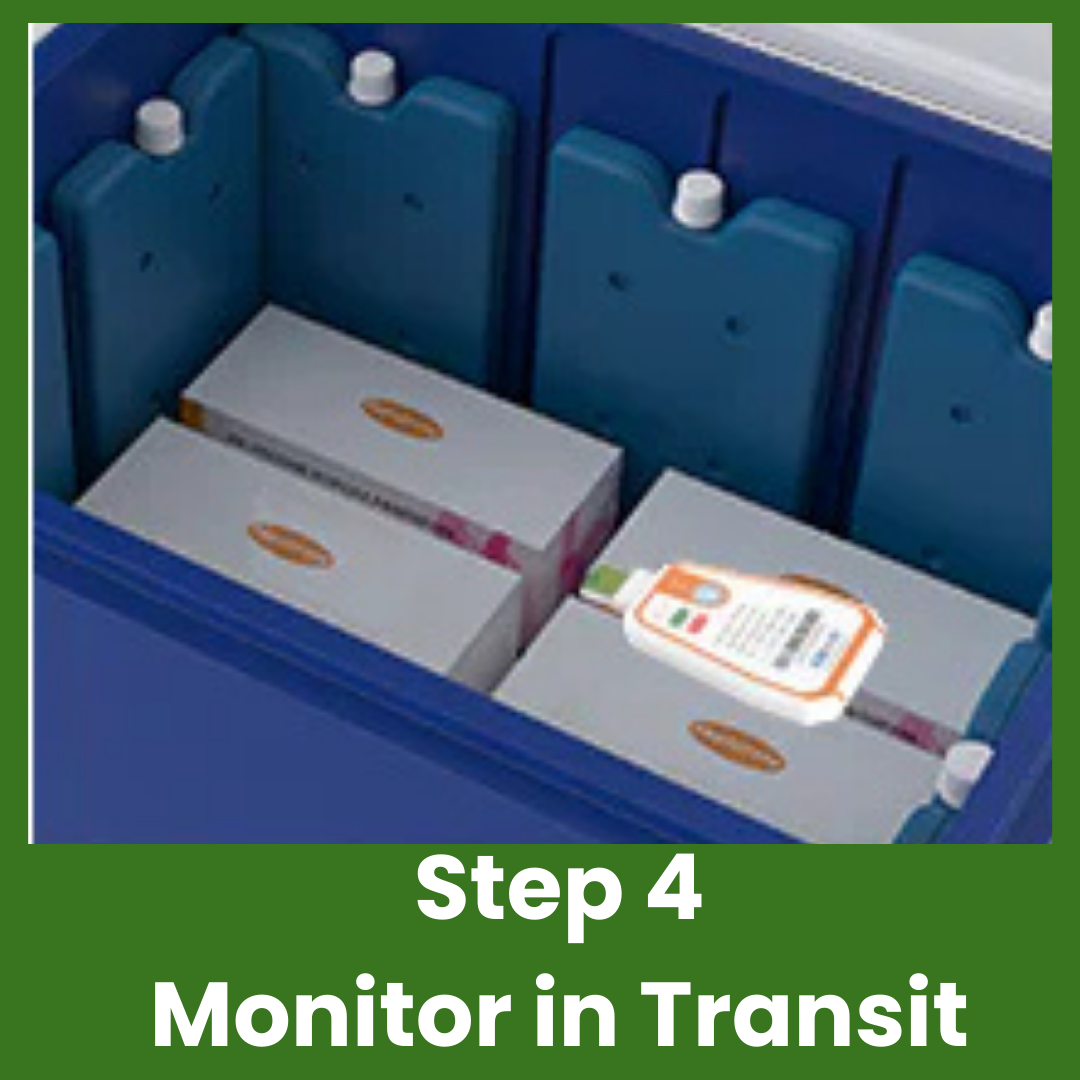

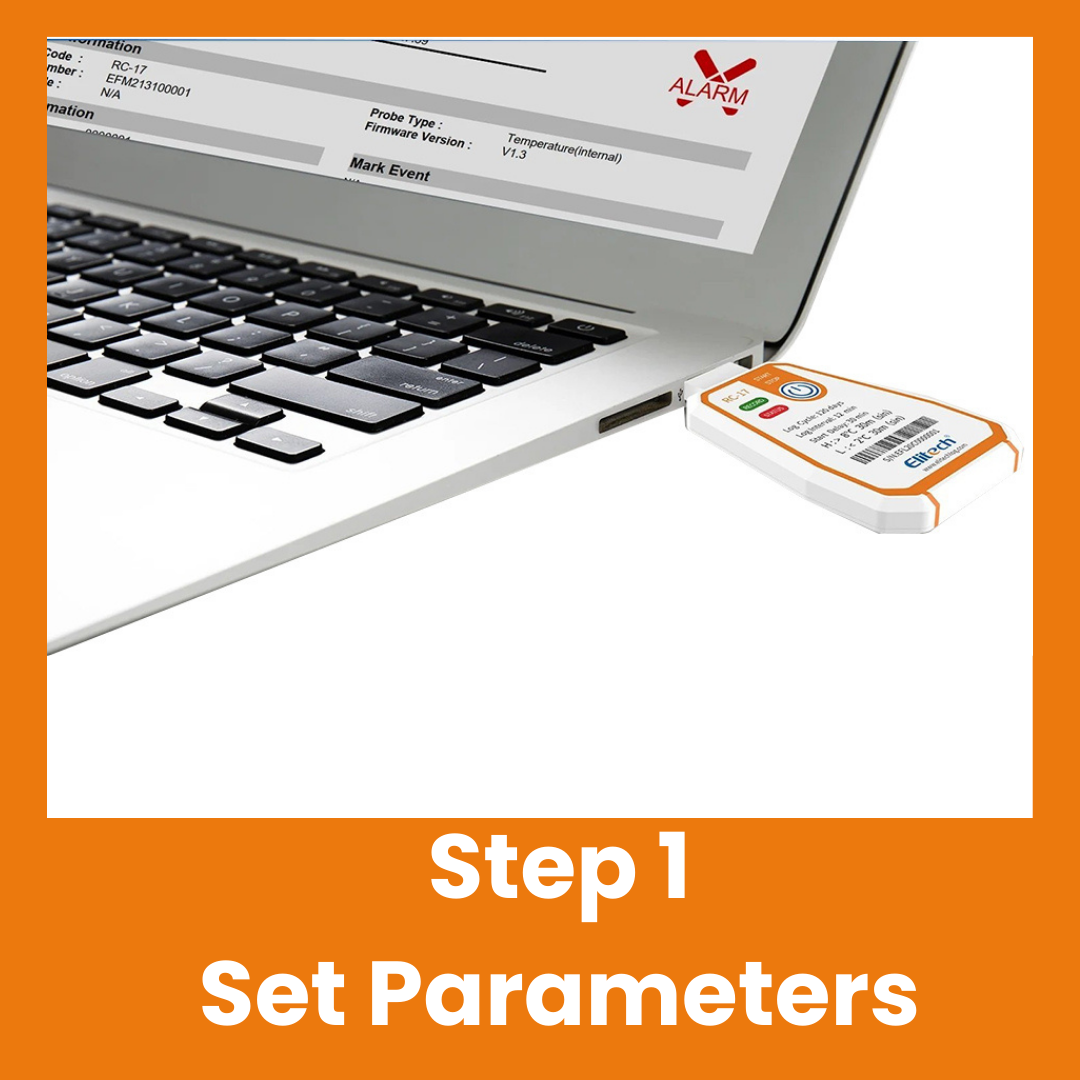

How to Use
Technical Specification:
| Manufacturer | Elitech |
|---|---|
| Model No | RC-17 |
| Measuring Parameters | Temperature |
| Sensor Type | Internal Temp |
| Temperature Range | -30° C to 70° C |
| Temperature Accuracy | ±0.5℃ |
| Resolution | 0.1 °C |
| Memory Capacity | Maximum 16,000 Points |
| Recording Period | 30 up to 180 Days |
| Logging Interval | 10 Seconds to 24 Hours |
| Power Supply | CR2450 Button Cell |
|---|---|
| Software | 1. Elitechlog for MacOS & Windows system; 2. Online webpage configuration |

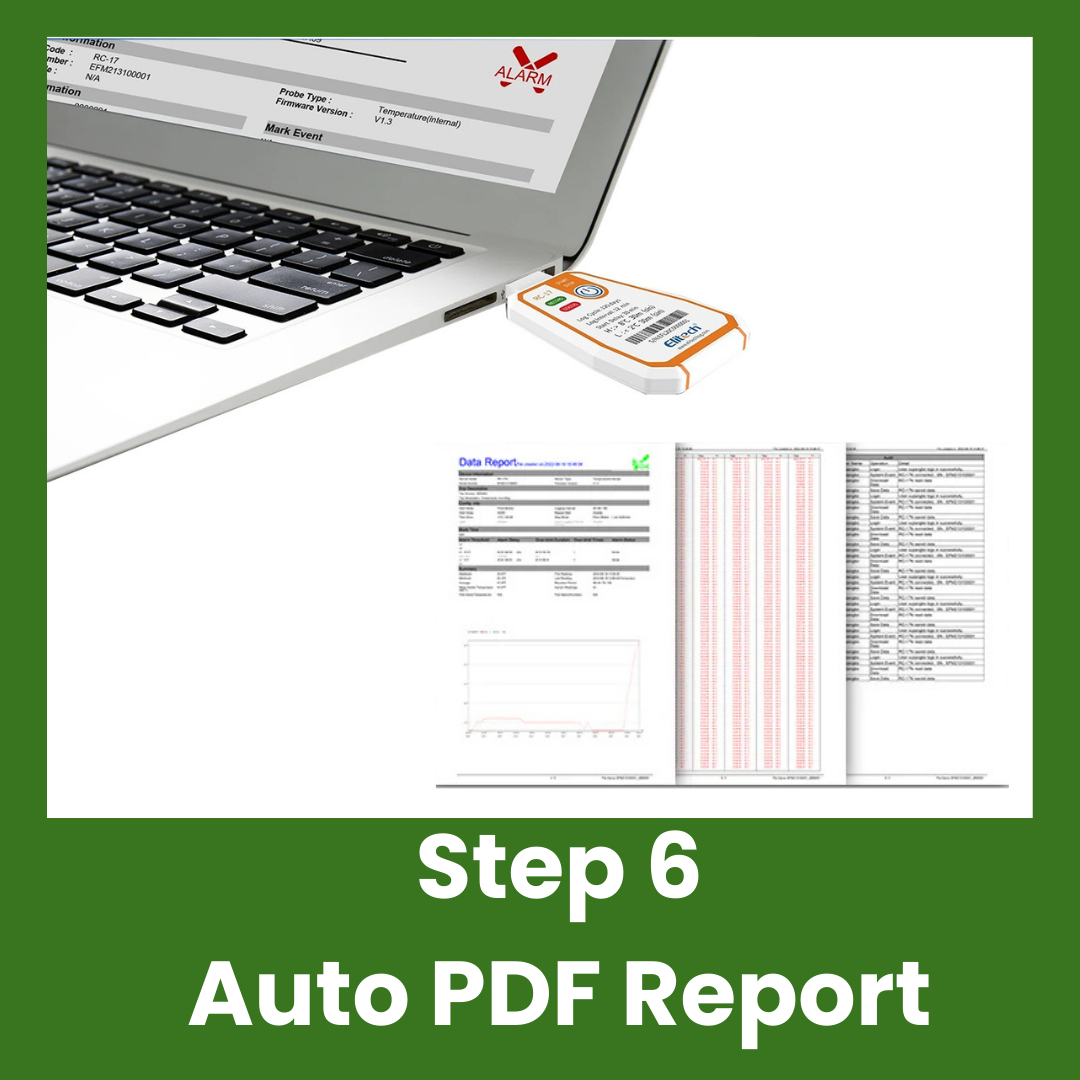

| Report Generation | Auto PDF report, PDF/EXCEL/TXT via ElitechLog Software |
| Communication and Data Download | USB2.0 |
| Logging Mode | Stop when full, periodic Record |
| Alarm | LED Indicators for quick screening |
| Protection grade | IP67 |
| Certifications | EN12830,CE,RoHS |
| Weight | 20g |
| Dimension | 93x58x8mm |
