Elitech RC-5+ Temperature Data Logger, PDF USB Temperature Data Recorder, 32000 Points, with Calibration Certified
Elitech RC-5+ USB temperature data logger features a plug-and-play USB port interface and allows for faster access to data collected in any cold chain management process. This could be used in pharmaceuticals, food, life science, cooler boxes, medical cabinets, fresh food cabinets, freezer or laboratories. Different from the normal USB temperature data logger, the RC-5+ temperature data logger has two types of alarms–single and cumulative alarm. Its robust and compact design satisfies the dynamic demands in any sensitive storage and transportation system. It records real time temperature that is stored in non-volatile memory for access via the USB port.
- Auto-generated and encrypted PDF report: Data could be queried, saved, printed, and exported in word/excel/txt /PDF format
- Wide measuring range: High accuracy, -30 ~ +70 °c with an internal sensor and large record capacity of 32000 points. ℃ or ℉ optional
- Easy to use: Long battery life & 10s ~ 24hour adjustable record intervals; over Temperature Alarm & Upper/Lower Limits
- Mac/Win supported: Free software supporting windows & macos systems; Data exchange with computer by USB without cable
- Multi-boot function: The reusable temperature logger, reboot by pressing button or operating on software
Multi-use Data Logger
1. Newly upgraded reusable temperature logger for RC-5.
2. USB disk design, no cable or driver needed,plug and read(Android Phone OTG supported)
3. Further setup and management can be done via elitec log software (MAC OS and Windows support)
Wide Temperature Range & Large Capacity
1. Temperature range: -30°C ~ 70°C
2. Accuracy: ±0.5°C
3. Large recording capacity: 32,000 points
4. Fast Response time
Specifications
Sensor: Internal NTC thermal resistor, no external sensor supported
Communication interface: USB
Power supply: CR2032 battery
Waterproof: IP65
CE certificate
Multiple use: data can be removed and start a new round by our software
Temperature unit: ℃ or ℉ optional
Record capacity: 32000 points (MAX)

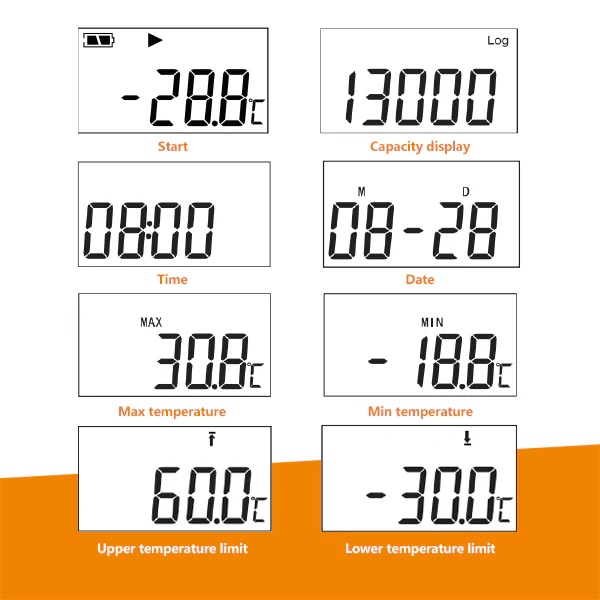

LED Display
1. Powerful LCD indication with key statistic information, convenient to check your data at any time
2. Over temperature alarm & upper/lower limits can be set
3. MAX/MIN values available
4. Record interval: 10s~24h adjustable

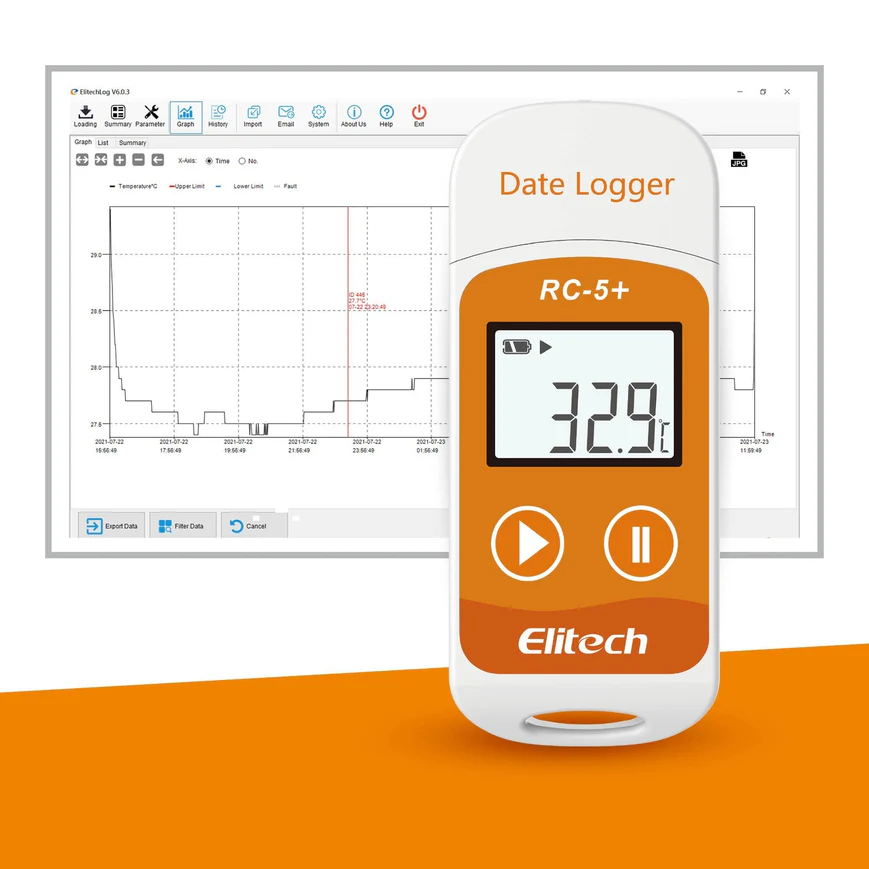

Free Elitechlog Software for Windows&macOS
Meanings of the Setting Parameters:
- Log Clock: Not configurable. But the time will sync with that on the computer after our user clicks the Save Parameter button under the Parameter tab.
- S/N: Not configurable.
- Trip Description: Configurable. The info entered here will be shown on the report, it can be used to differentiate one logger from another.
- Log interval: Configurable. This means how often our user wants the logger to perform a reading, it can be 105, 1minute, or 1day.
- Start Delay(H): Configurable. This means after you press the start button on the logger, how long it would wait to officially start logging.
- Press button: Configurable. This means after we press the start button for 4 seconds on the logger to start logging. We can still press this button to restart the logger.
- Temperature Unit: Celsius or Fahrenheit Optional.
- High/low limit: Configurable. The upper and lower alarming point you want to set.
1. Technical Parameters:
- Sensor: Internal NTC thermal resistor, no external sensor supported
- Temperature measuring range: -30°C~+70°C/-22°F~158°F;
- Resolution: 0.1°C
- Accuracy: ±0.5 °C (-20°C~+40°C); others, ±1°C
- Temperature unit: °C or °F optional (Set on Elitechlog software)
- Communication interface: USB
- Power supply: CR2032 replaceable battery
- IP67 waterproof grade
- Dimensions: 80mmx25mmx12mm(LxWxH)
- Shelf Life/Battery: 1 year;
- Log Interval: 10S~24H
- Record capacity: 32000 points (MAX)
- Multiple-use: data can be removed and start a new round by our software.
- Data could be queried, saved, printed and exported in Excel/PDF format via Elitechlog software.
- Package Included: 1 x Elitech RC-5+ Data Logger; 1 x CR2032 Battery; 1 x User Manual
2. Password Protection:
Optional password protection will keep your data’s security.
3. Product Upgrades
The new-added function allows the data logger to generate PDF report automatically once connected to a computer or Android phone.
4. Restart by Long Press
1. By long-pressing the left button to restart the data logger, it is convenient for multi-use purposes and the stored data will be cleared simultaneously.
5. Double the Battery Life
RC-5+ is with a battery life of up to 6 months (15°C~23°C/45%RH~75%RH), which doubles RC-5’s battery life.
*Notice: For replacement battery, please choose a battery suitable for temperature range-22°F~158°F.
