Commercial dehumidifier TTK 655 S
The show piece of the Trotec standard series

Standard at Trotec, but far from being a matter of course everywhere
The top model of our commercial dehumidifier standard series is truly outstanding in every respect when compared to the competition:

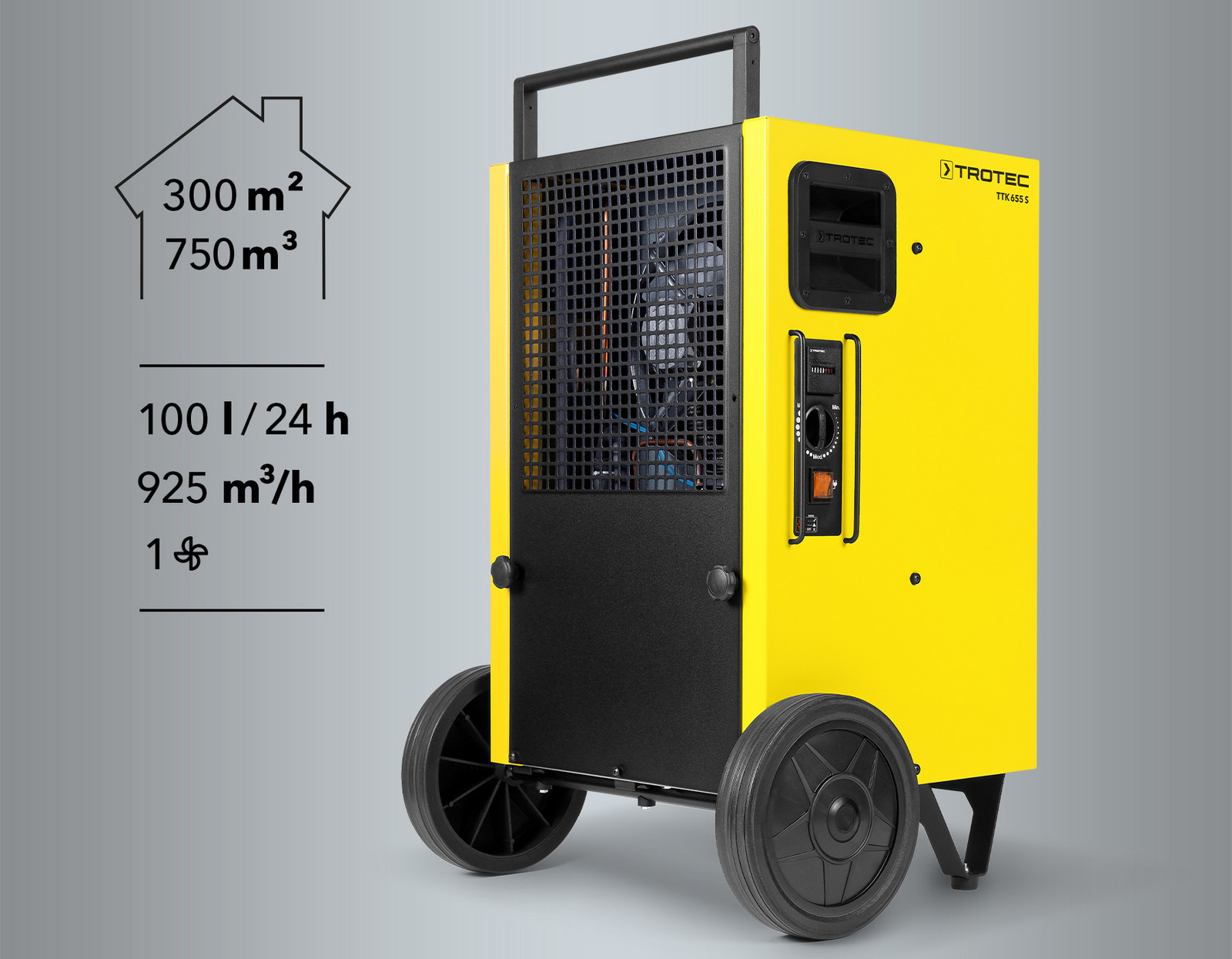

The TTK 655 S can condense up to 100 litres per day. That is more than 4 litres per hour! This is made possible by a perfect cooperation of a high-performance heat exchange and fan system which can circulate and dehumidify air flow rates of 925 m³/h. The powerful 1.9 kW compressor ensures a high dehumidification capacity in large rooms, even at room temperatures below 10 °C – and the high-quality hot gas automatic defrost of the TTK 655 S guarantees a much more efficient dehumidification performance without pausing on a time interval during which no defrosting occurs.
"Dry-ve time music" – listen to it play...
Use it for construction drying today and clearing water damage tomorrow – common changes of site and use in rough construction site conditions are no problem for this condenser dryer: The rotary compressor of the TTK 655 S not only makes it possible to transport it just about anywhere, they also allow you to start the dehumidifier immediately after positioning. Transport is quick and easy thanks to the ergonomic construction and carriage design with a bar handle and large wheels. Uneven terrain and stairs are no problem. And the non-marking rubber wheels of the TTK 655 S leave no marks on your floorboards or other sensitive flooring indoors. To prevent hazardous dust or moisture from gathering on the electronics, not only the electronic components of the dehumidifier, but also all other components of the TTK 655 S are safely enclosed and attractively combined in the practice-optimized German industrial design – protected design patent.

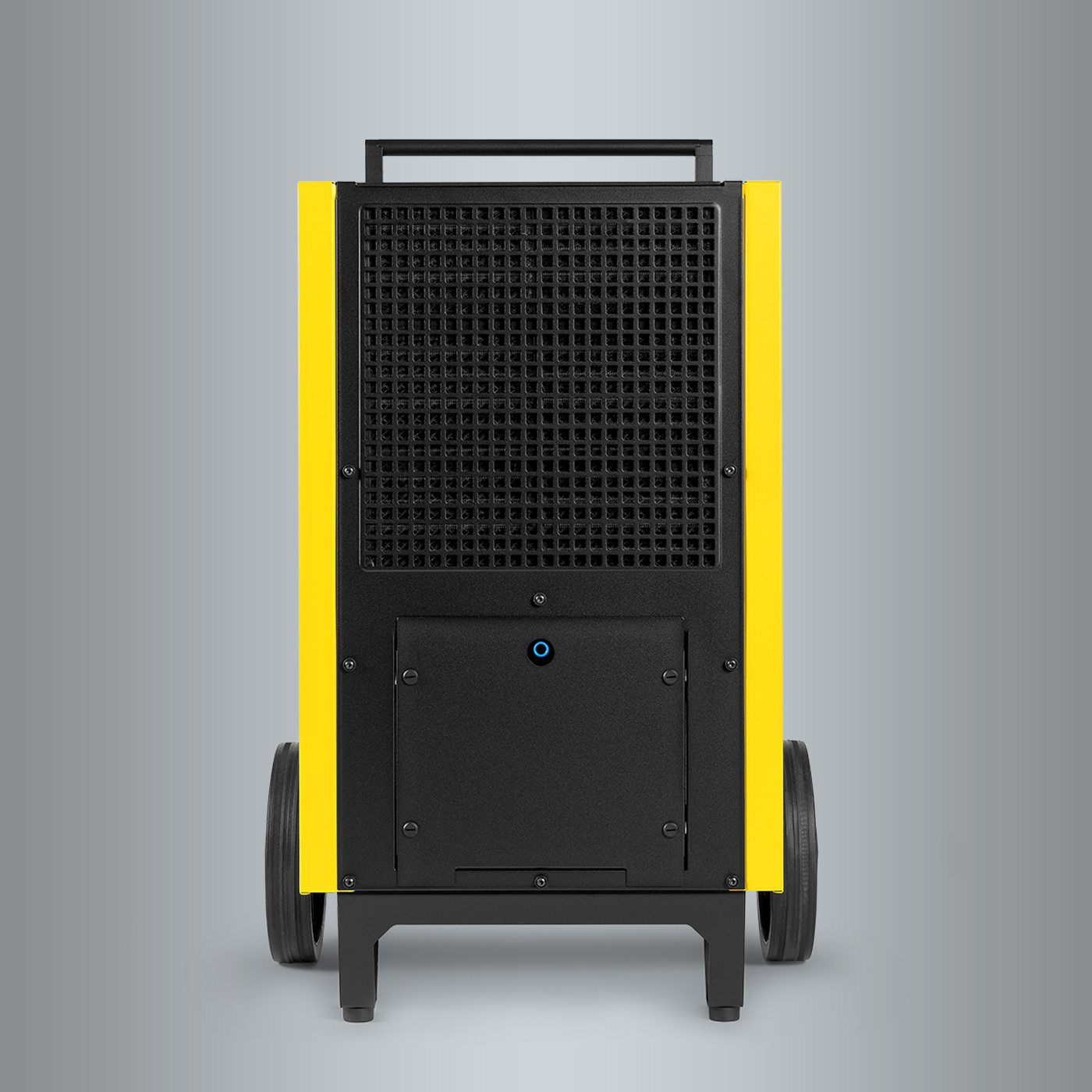

TTK 655 S
Special Equipment Features





Advantages for the practice:
Active value retention thanks to integrated compressor heating protection with automatic switch-off function
In drying applications with extremely high humidity levels and simultaneously high temperatures – for instance during water damage restoration – refrigerant dryers are quickly brought to the limits of their capacity (red range). This is where the catchy “rule of 35” applies: drying water damages with more than 35 degrees reduces the lifetime of the dryer to less than 35 %!
This is however not a question of component quality, but pure physics, which applies to all refrigerant dryers on the market regardless of the manufacturer.
Whilst at a moderate humidity level of about 70 % RH most professional condenser dryers can operate in temperatures of up to 35 °C without difficulty, very high humidity values at a simultaneously high room temperature cause considerably more energy to be fed to the humid room air, which then also has to be “worked off” by the refrigerant.
Consequently, the refrigerant pressure in the system is increased enormously leading to destructive load on the compressor.
To be sure, the dehumidifiers will at first continue to operate, but noticeably above their limit “deep in the dark red range”, resulting in an extremely shortened remaining lifetime.
All the same, there is no way around the application of a condenser dryer for such drying tasks – desiccant dehumidifiers need considerably more energy to achieve the same level of drying performance and are therefore not a reasonable alternative, especially in terms of economics.

This is why the commercial dehumidifiers of the TTK-S series have an integrated compressor heating protection ensuring active value retention of your devices:

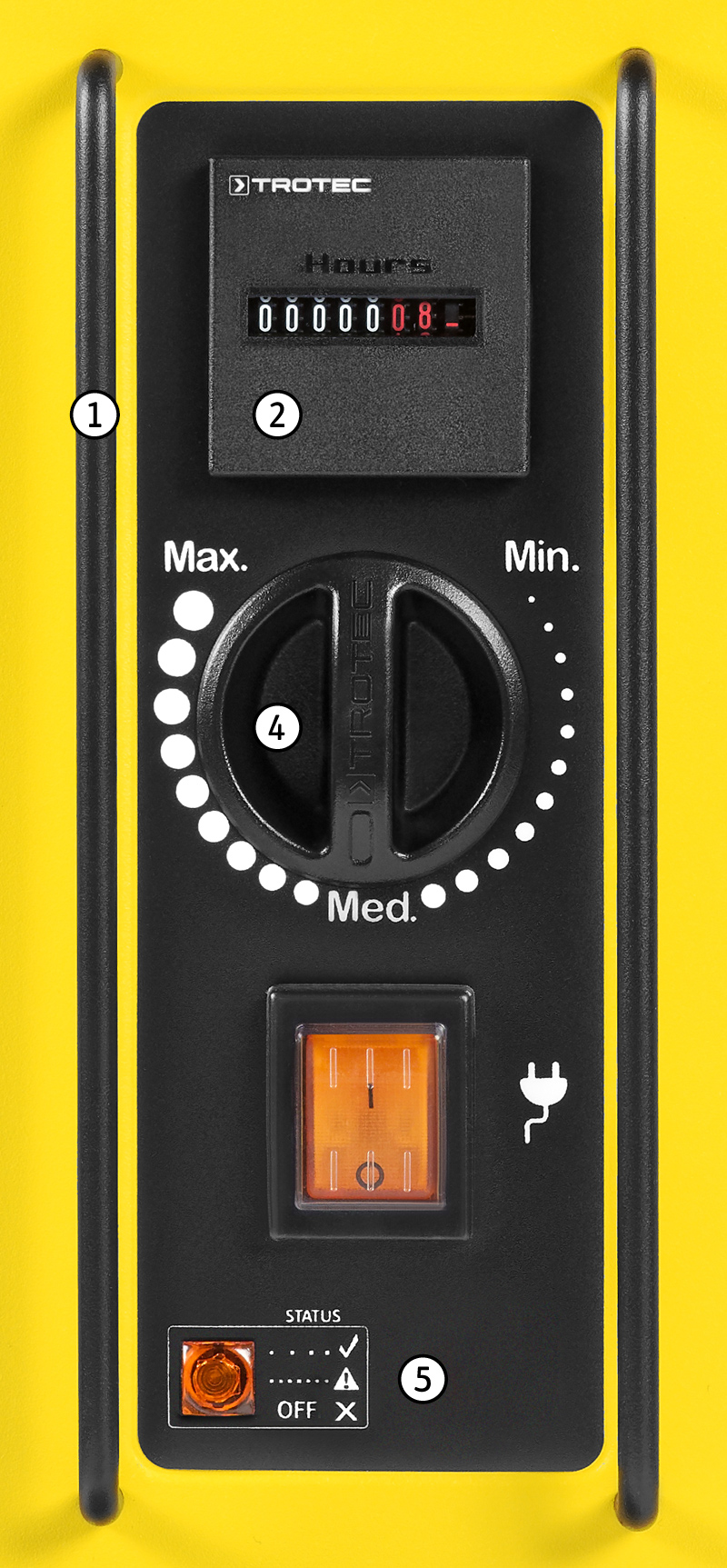

Sensors permanently monitor the thermal load of the compressor. If the temperature is within the defined operating range, the integrated heating protection indicator emits long pulses to indicate that the dehumidifier is operating ideally.
As soon as the temperature exceed the critical threshold of 35 °C, the automatic function switches the compressor off in order to protect it while the fan keeps on running. The compressor is automatically activated again once the temperature falls below the 35 °C threshold.
This protection not only significantly extends the lifetime of your dehumidifiers, it also prevents thermal damages to materials located in the room and the building structure.
Accessory tip:

Installation condensate pump for continuous operation
Suitable for all TTK-S models, a plug-in condensate pump is also optionally available, which can be installed very easily instead of the collection container and allows for automatic condensate discharge via the 5-m drain hose supplied. With a pump performance up to a distance of 50 m and a maximum delivery head of 4.3 metres, this pump is ideally suitable for longer unattended dry keeping applications in continuous operation – just add it to your order right away!

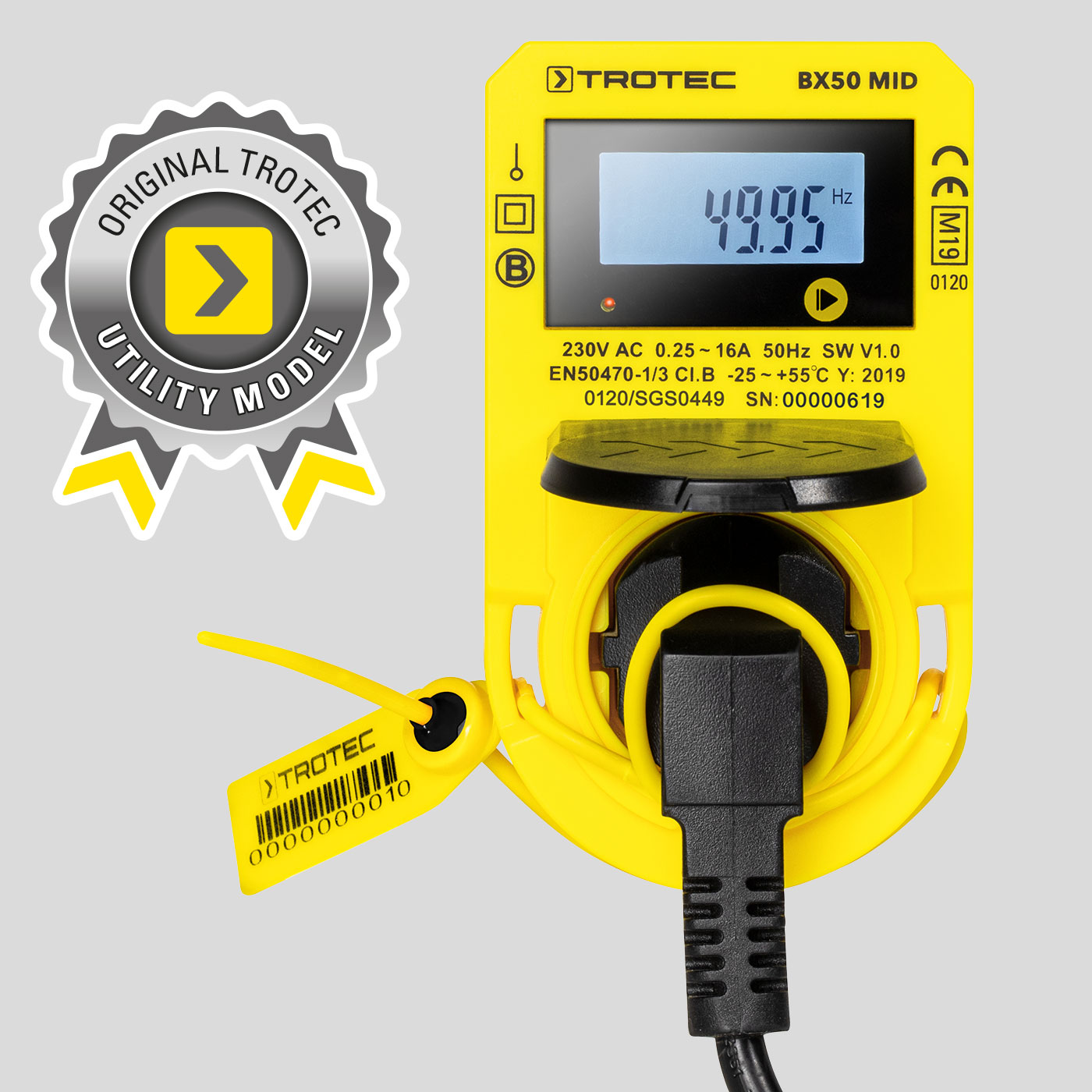

Proper energy billing for existing equipment without meters?
You're using this or another electrical appliance without MID-compliant energy consumption meter of which you have to report the current consumption to insurance companies? Then the BX50 MID is the perfect solution. Just install it between the device and a fixed socket – done!
Fan assistance

Quicker construction drying by air circulation
The drying time can be reduced by half if construction dryers and fans are combined. In doing this, each dryer is supplemented with a fan, which significantly improves the drying performance and thus also the duration of the drying process. The increased air circulation results in a quicker evaporation of the humidity, for the higher the flow rate at the material surface, the sooner will the drying process be completed. The axial fans of the TTV series and TTV-S series are especially suitable to provide assistance with regard to the drying process.

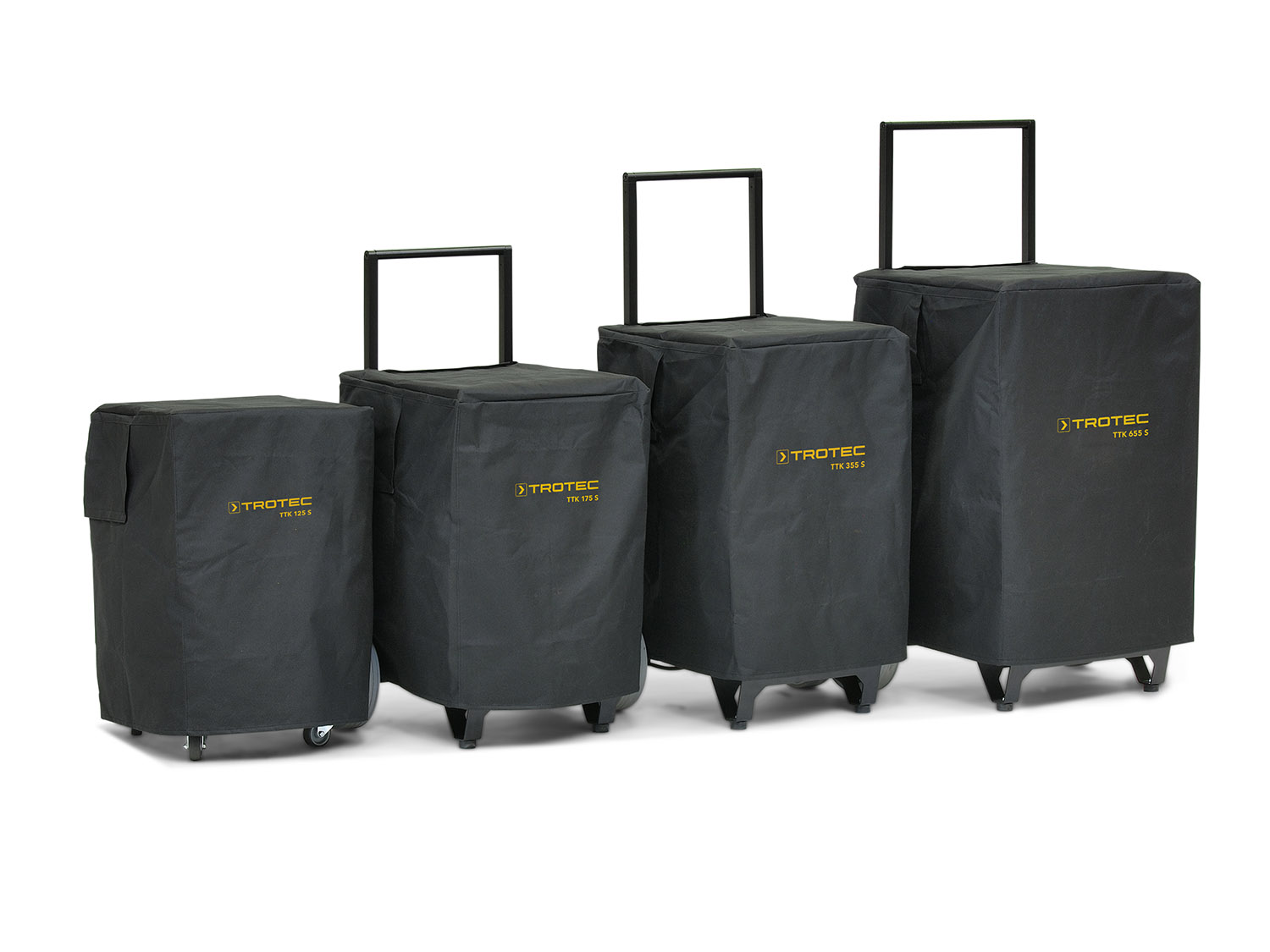

Protective cover
A handy protective cover is optionally available for all commercial dehumidifiers of the TTK-S series. This way, weather conditions, dust etc. can no longer affect the dehumidifier TTK 655 S.
